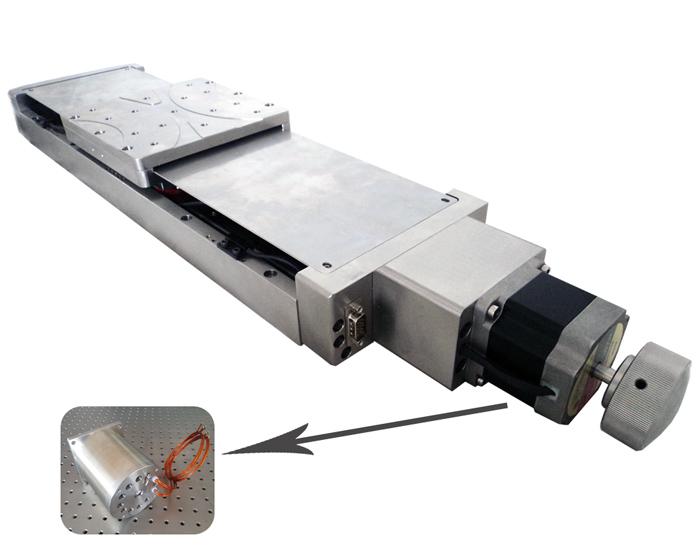

VWN220TA vacuum compatible motorized linear stage uses stainless steel as main material. Equipped with stepper motor and ball screw drive, the stage is suitable for industrial processing, laboratory working or other heavy workload.
Multiple travel ranges to choose from: 50mm~500m, the highest load capacity is 50kg.
|Screw Type||High precision ball screw (lead 5mm)|
|Guide Rail||High precision linear slide rail|
|Stepper Motor (0.72°)||5-phase Stepper motor|
|Load Capacity||50 kg|
|Accuracy||Resolution||10μ(Non-MS driver) |
0.5μ(20 MS driver)
|Accessories||Renishaw grating scale with the resolution of 0.1μ|
