- WN02WX(50-106) Gimbal Mirror Mounts
WN02WX(50-106) Gimbal Mirror Mounts
WN02WX(50-106) gimbal mirror mounts are equipped with M6x0.25 fine threaded screw, the adjustment range is ±5°. Lenses are protected by polytetrafluoroethylene. Two rotating axes are orthogonal and coplanar, which makes the optical path constant. Lens of different diameters can be mounted, the manual and electric adjustment is also provided.

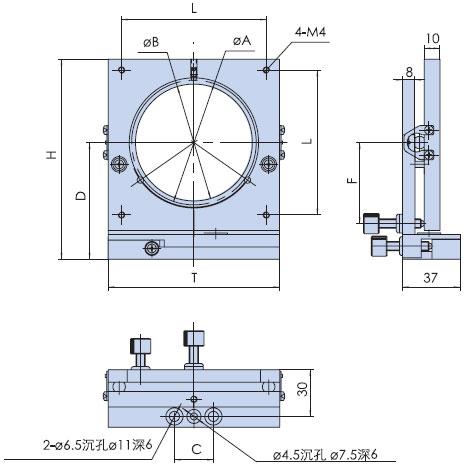

| Model | WN02WX50 | WN02WX80 | WN02WX100 | WN02WX102 | WN02WX106 |
| A | 50 mm | 80 mm | 100 mm | 102 mm | 106 mm |
| B | 48 mm | 75 mm | 95 mm | 97 mm | 107 mm |
| C | 25 mm | 25 mm | 50 mm | 50 mm | |
| D | 60 mm | 75 mm | 85 mm | 86 mm | 86 mm |
| L | 57 mm | 93 mm | 113 mm | 90 mm | 84 mm |
| H | 102 mm | 128.5 mm | 146.5 mm | 151.5 mm | 151.5 mm |
| T | 84 mm | 110 mm | 130 mm | 132 mm | 132 mm |
| Adjustment range | ±5° | ||||
| Weight | 0.25 kg | ||||
- Equipped with M6x0.25 fine threaded screw. (brass nuts are added)
- High strength spring reset device; the reset force is adjustable from zero to rigidity.
- Lenses are protected by polytetrafluoroethylene.
- Two rotating axes are orthogonal and coplanar, which makes the optical path constant.
